1/15 HP Gecko Aqua-Flo CMXP Spa Pump 1 Speed 230V 2" MBT 06093000-2000

Circulation Pump, 0.6 Amp, 48 Frame, 2" MBT Plumbing, Side Discharge, Less Unions
SKU
06093000-2000

Create an account or Log in to view pricing and stock information

Notify me when this product is in stock

Detailed Description

1/15 HP Gecko Aqua-Flo CMXP Spa Pump 1 Speed 230V 2" MBT 06093000-2000
Smart design, cool runnings and the highest gpm of any recirculation pump in the spa industry.

Circ-Master XP

Aqua-Flo by Gecko's CMXP pump takes 24-hour filtration to a new level, delivering the highest GPM of any recirculation pump in the spa industry. Smart design, cool running's, new cmxp pumps feature increased filtration efficiency, greater flow to heater and compact design for continuous duty operation.

Features

  • Increase filtration efficiency
  • Optimized water circulation

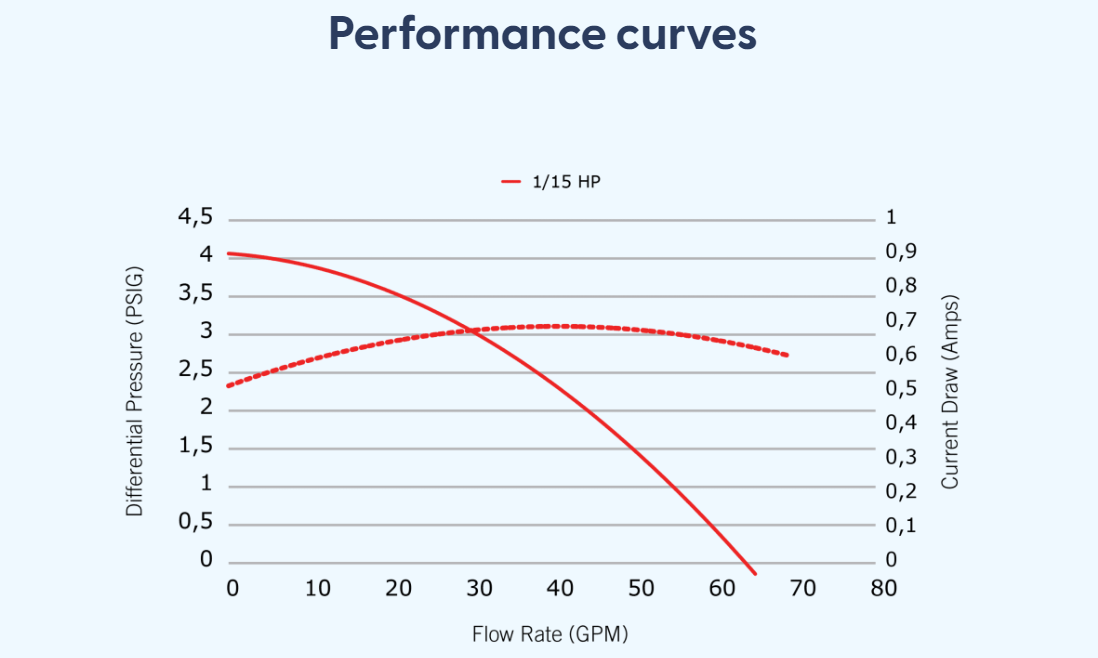

  • Flow Rate Up to 69 GPM
  • Compact design
  • Design for continuous duty operation
  • Built-in external fan
  • Cooler operation

Customization variables:

  • 2″ intake and discharge
  • UL approval E62386
  • Sealed bearing
  • Seal: Gecko high-quality Universal

Standard version includes:

  • 2x white 2″ union nuts with 2″ slip tail pieces and O-rings
  • Three wing nut drain plugs
  • 2.4 m (60”) cable with AMP plug
  • Standard wet end position 12 o’clock
**Pump & motor manufacturers reserve the right to change motors on pumps or style of motor without notice. Motors shown may differ from current stocked product. Functionality remains the same**


Additional Information

Voltage 230
Cord Type AMP
Horsepower 1/15
Discharge Location Side
Discharge Size 2" MBT
Number of Speeds 1
Frame Size 48Y
Frequency (Hz) 60
High Speed (Amp) 0.6

Alternate Part Numbers

Available Documentation

  • 1-00-0040
  • PRCB539X
  • PRC014X
  • CALPUM22100943
  • 1000040
  • P1AN-1-00-0040
  • 689145865486
  • PUM22100943
  • 060930002000
  • AF060930002000
  • 06093000-2000
  • 06310000-2340
  • 06310000-2370
  • 06310002-2370
  • 06311000-2040
  • 06311000-2340
  • 06311001-2340
  • 06311002-2040
  • 06311002-2340
