UEI 600A Dual Display TRMS-Clamp Meter DL579
Multimeter, Digital, TRMS-Clamp w/ Temp/Capacitance/Inrush
SKU
DL579
Detailed Description
UEI 600A Dual Display TRMS-Clamp Meter DL579
The DL579 is a True-RMS HVAC/R clamp meter. It has functions like AC/DC voltage, AC amps, AC/DC microamps, resistance, capacitance, frequency and duty cycle. It includes test leads, a pair of alligator clips, thermocouples, a zippered pouch.
Application:
Measure capacitance, voltage, circuit continuity, resistance, temperature via K-Type thermocouples and diode malfunctions. Check system boards and live wires.
Features:
- TRMS
- Dual Display
- Backlight
- Min/Max/Hold
- Test Lead Storage
- High-voltage alert
- Auto and manual ranging
- Auto Off
- Low battery indicator
- 1-Year limited warranty

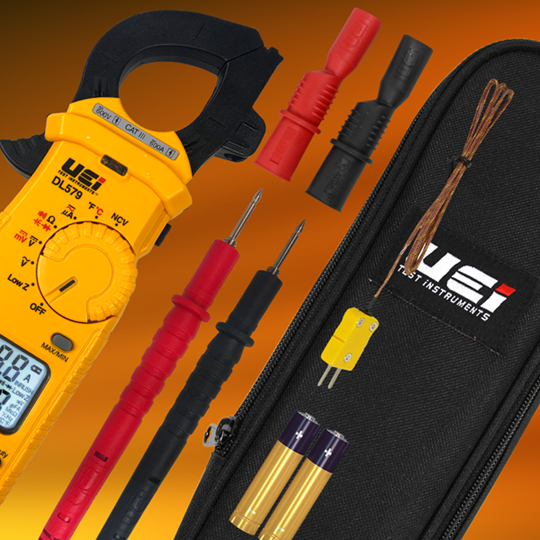

Includes:
- Test Leads (ATL55)
- Alligator Clips (AAC3)
- Temperature Probes 2 (ATT29)
- Zippered Pouch
- Batteries 2 (AAA)
- Manual
Functions:
- 600A AC
- 1000V DC
- 750V AC
- 2000 DC µA
- 2000 AC µA
- 60MΩ Resistance
- Capacitance: 6000 µF
- Temperature: -328° to 2462°F
- Frequency/Duty Cycle
- Audible Continuity
- Diode Test
- Non-Contact Voltage Detection
- LRA Inrush
- Low Z (impedance)
