HydroQuip Baptismal Heater Assembly BCS-55-3W

Heater Assembly, Baptismal, HydroQuip, 230V, 3 Wire, 5.5kW, 13" Long, Replaces 20-08421
SKU
BCS-55-3W
Product Availability

Notify me when this product is in stock

Detailed Description

HydroQuip Baptismal Heater Assembly BCS-55-3W
The smart choice

The BCS-55 Series is the newest Baptismal Control System. It is a vertically mounted circulation style baptistry heater control system. Simple, compact design for easy installation and it's a great replacement for all existing vertically mounted circulation style systems.


Features:

  • Pressure Switch Activated
  • Detailed Owner’s Manual & Wiring Diagram
  • 13” & 15”, 5.5kw Heater in 304SS Housing
  • Full Range Thermostat
  • High Limit Protected

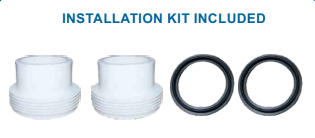

  • Installation Kit (see below)



Specifications:

  • Single Phase
  • 50/60HZ
  • Total AMP Draw: 23A
  • High Limit
  • Pressure Switch
  • Tailpiece
  • Pump Receptical
  • Control Air Switch
  • *3-Wire Service
  • Dimensions: 13"H x 6.5"W x 5.5"D
  • Minimum Space Required: 26"H x 7"W x 6"D

Additional Information

Alternate Part Numbers

  • 20-08421

Substitute(s)

Suggested accessories
